ABM-50 AUTO FEED DOUBLE SIDED BEVELLER
Featuring unique LCD display remote control
ABM50 produces accurate high-quality, double-sided bevels without thermal distortion or creation of a heat-affected zone on plate thickness range 8-80 mm (15/16” – 3 1/8”), using a purpose-designed bevelling head with eight 4-sided indexable cutting inserts. Continuously adjustable bevel angle between 15 and 60° (for both top and bottom bevelling) requires no tooling to change.
Want to make sure the 'ABM-50 AUTO FEED DOUBLE SIDED BEVELLER' is right for you? Speak to our specialist solutions team today.
FIND OUT MORE PURCHASE OR HIRE WATCH VIDEO
Top bevelling
Bottom bevelling
Min plate thickness 8 mm 5/16” Max plate thickness 80 mm 3 1/8”
Bevel angles top 15° - 60°, Bottom 15° - 60°
Bevel width up to 50 mm (2”) / 45° - Up to 66 mm (2 5/8”) / 15°

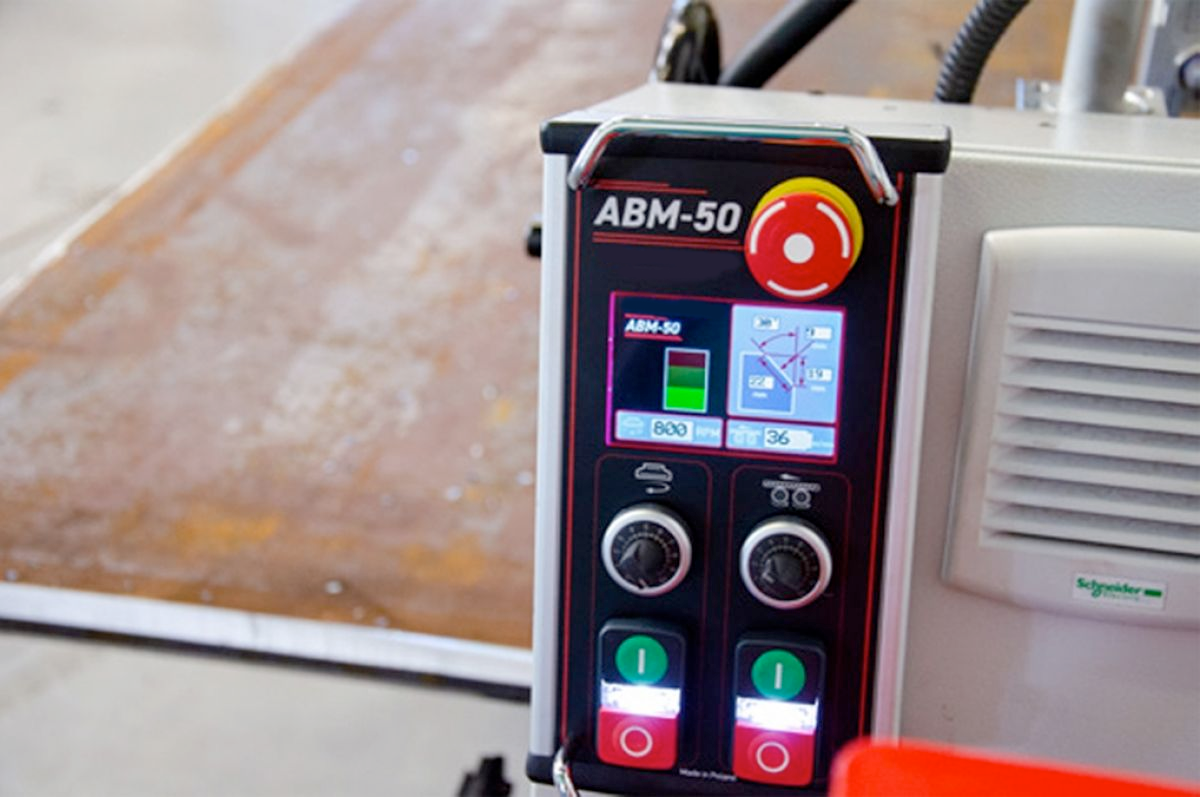

UNIQUE REMOTE CONTROL WITH LCD DISPLAY
The ABM-50 features an unique remote control panel with LCD display that shows exact bevel geometry as well as enables precise adjustment of spindle speed and feed speed to optimise them depending on material grade incl. stainless steel, aluminium etc.
ELIMINATES HARD PHYSICAL WORK
ABM-50 can perform bevelling along steel plate’s edge eliminating hard physical work of the operator. The maximum bevel at 45° is up to 50 mm (2”).
DOUBLE-SIDED BEVELLING & PRECISE SPINDLE SPEED ADJUSTMENT
ABM-50 can create a double-sided bevel eliminating the need to turn a plate over.
Precise adjustment of spindle speed and feed rate to optimise cutting conditions depending on sort of material grade incl. stainless steel, alloys and aluminium.
FEATURES
180° inversion of ABM-50 enables bottom bevelling. No the need to rotate or flip heavy material that reduces workpiece handling costs and improves shop safety.
Accessories
Cutting Insert 1 Piece
Bevelling Head
Specification
| Model | ABM50 |
| Weight | 320 kg |
| Maximum Bevel Cut Width | Width 62 mm at 15° (6 mm max bevel per pass) |
| Bevel Angle | 15-60° infinitely variable |
| Material Thickness | 8 to 80 mm |
| Motor Power | 4000 Watt / 400v 3 phase |
| Cutting Speed | 1.2 meter / min |
