ABM-14 PLATE AND PIPE BEVELLER

Designed to bevel plates & pipes made of steel, alloy steel, stainless steel & aluminium alloys

In just one single run the machine can bevel up to 2.6 m/min. (8.5 ft/min.) to a width of 12 mm (1/2’’) in workpieces with tensile strength of Rm ≤ 392 MPa (57,000 psi). Maximum bevel width is 14 mm (9/16’’). Depending on materials two or more runs are needed. Bevel angles include 30o (standard) and with optional angle variation devices also 22.5o, 25o, 35o, 37.5o or 45o.

Want to make sure the 'ABM-14 Plate and Pipe Beveller' is right for you? Speak to our specialist solutions team today.

FIND OUT MORE  HIRE NOW  WATCH VIDEO

Bevel width up to 14 mm (9/16’’)

Top bevelling

Bottom bevelling

Min plate width 55 mm (2-3/16’’)

Min plate thickness 6 mm Max plate thickness 40 mm (1-9/16’’)

Pipe OD beveling Min. ID 100 mm (4”)

Bevel angles: 30° ( option) 22.5°, 25°, 35°, 37.5°, 45°

FAST, EFFICIENT & QUIET


There is no need to wear acoustic protection equipment because the noise produced by the machine does not exceed 70 dB.

Reverse Release


In the case of the cutting tool getting stuck in the material and bevelling cannot be continued the direction of rotation of the tool can be reversed to release the machine from the workpiece.

FEATURES


Top plate beveling
Bottom plate beveling
Oval workpiece and pipe beveling

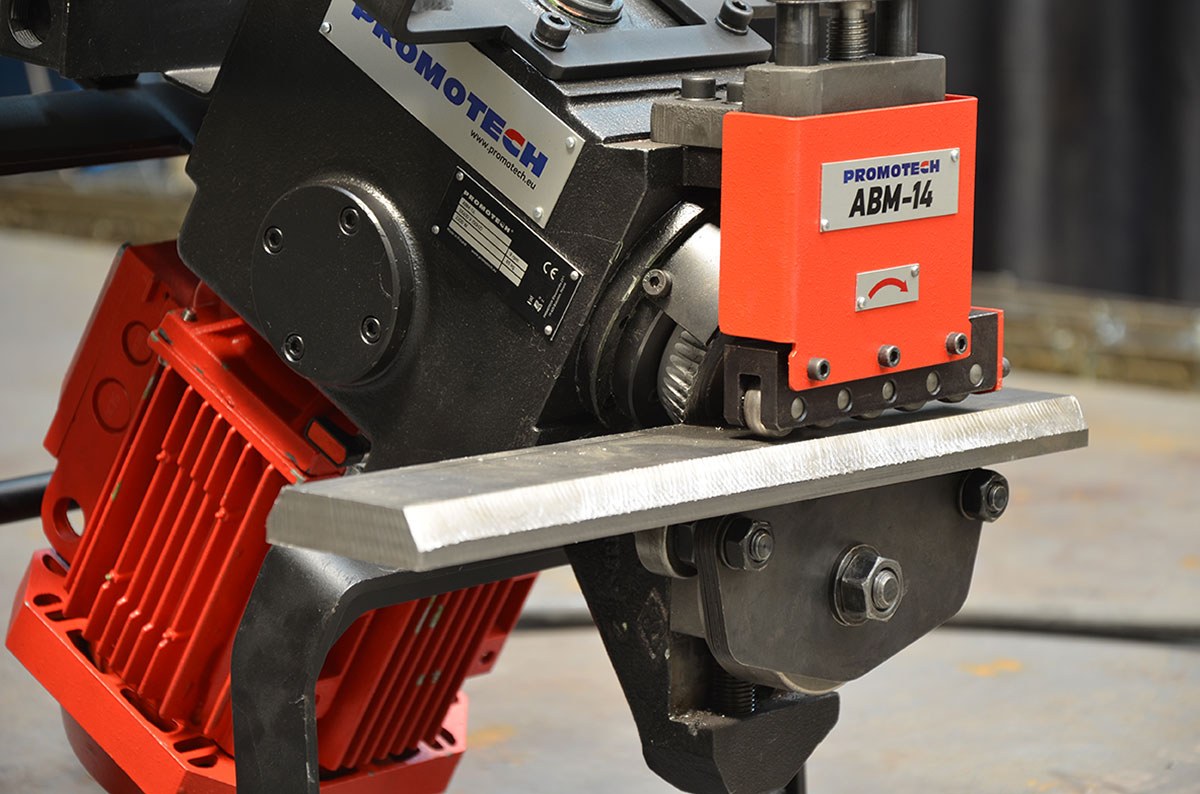

Beveling at 30o

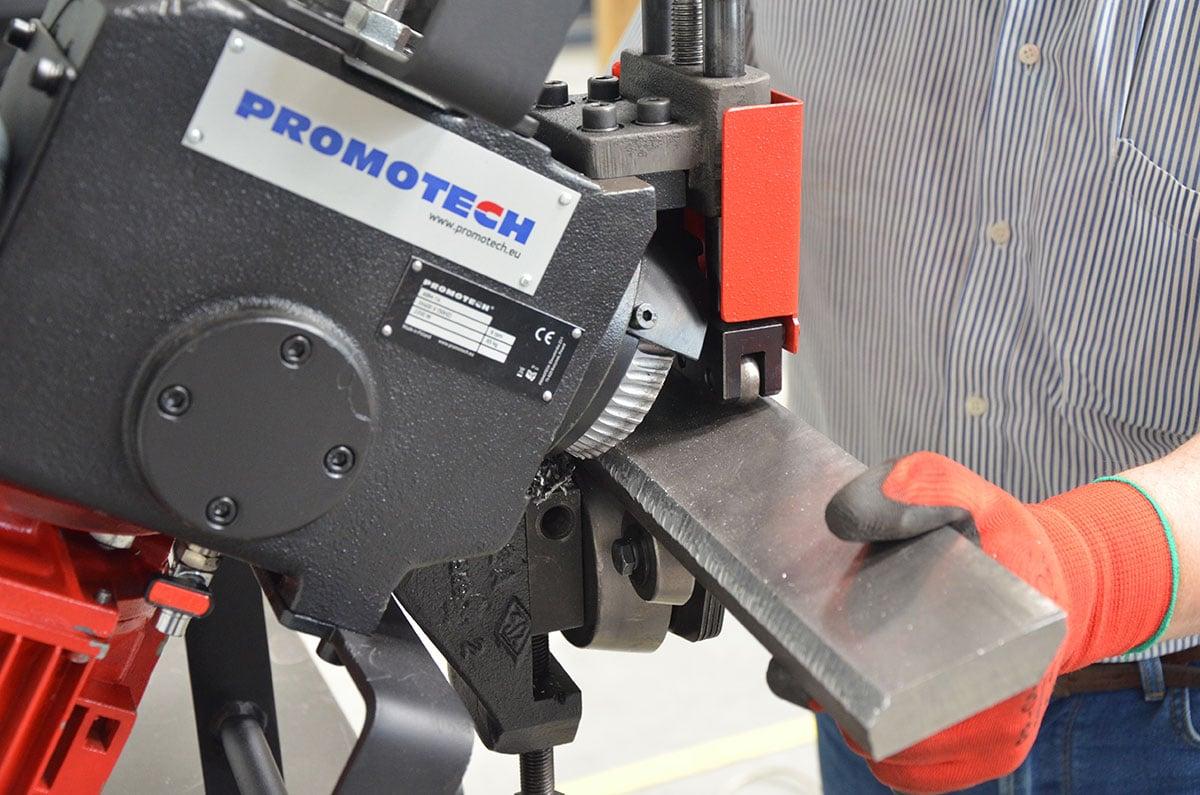

Beveling at 45o
Maximum bevel width up to 14 mm

Accessories


Cutter for carbon steel

Cutter for stainless steel

Cutter for aluminum

Angle Variation Device 22.5° – 45°

Cutter extraction tool

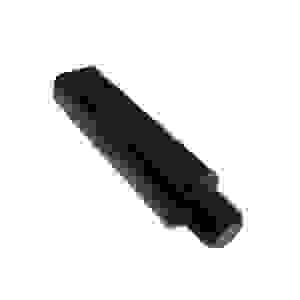

Tube beveling shaft

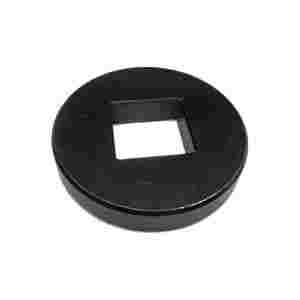

Tube beveling washer

Adjustable trolley

Download the ABM-14 specifications

DOWNLOAD BROCHURE DOWNLOAD MANUAL
