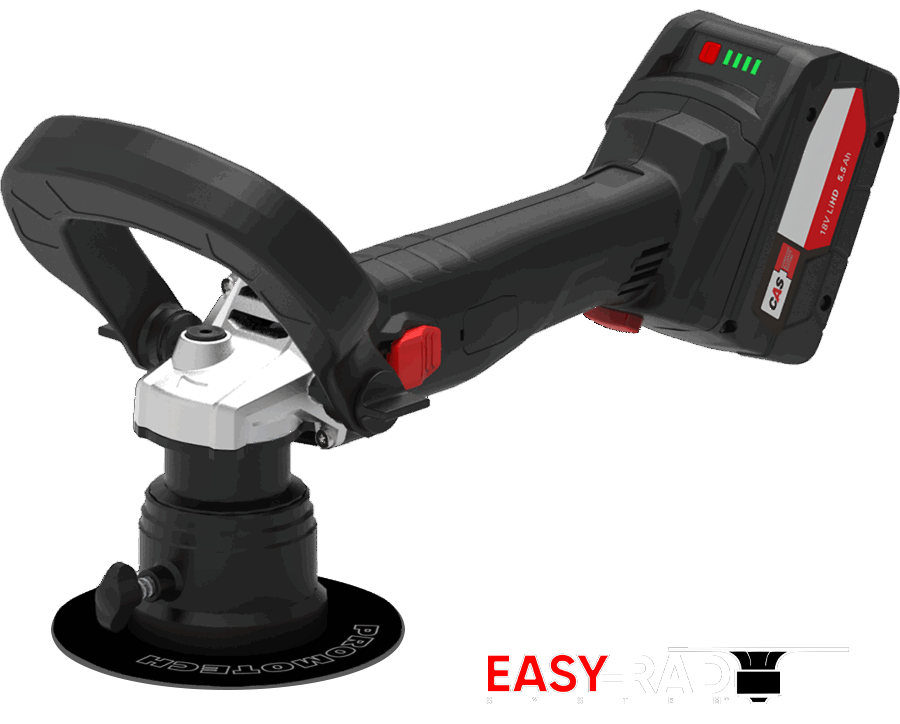

BM-6C
Cordless Compact Bevelling Machine
The BM-6C is a compact, lightweight, battery-powered machine that produces clean bevels up to 6 mm wide on plates, pipes, and contours. It’s also the ideal tool for rounding off radii R2, R3, R4, and R5 on metal structures before painting, which helps to prevent rust build-up on sharp edges.
With no supply cable to trip over or tangle, the BM-6C offers maximum flexibility and portability, making it perfect for outdoor use or remote locations with no access to mains power.
To keep you working longer, the BM-6C comes with two rechargeable CAS batteries included.
Want to make sure the 'BM-6C' is right for you? Speak to our specialist solutions team today.
FIND OUT MORE PURCHASE OR HIRE WATCH VIDEO
TOP BEVELLING
BEVEL RADIUS, R2, R3, R4 OR R5
ARCHED EDGE BEVELLING
COUNTERSINKING MIN. ID 40 mm
PIPE OD BEVELLING
PIPE ID BEVELLING Min. ID 40 mm
BEVEL ANGLES 45° (with optional 30°)
MAX BEVEL WIDTH 6 mm
WHY THE BM-6c?
The new EN 1090 & EN-ISO 12944 Part 2 applications directive, demands a soft or radius edge applying to all steel sections before painting, to prevent rust build up on sharp edges. The BM-6C, is quick, simple-to-use, and creates a perfect radius in just one pass, saving time and money over conventional grinding methods.
FEATURES
Aluminum bevelling
Countersinking
Rounding off curved edges
Pipe bevelling
On-Site Bevelling

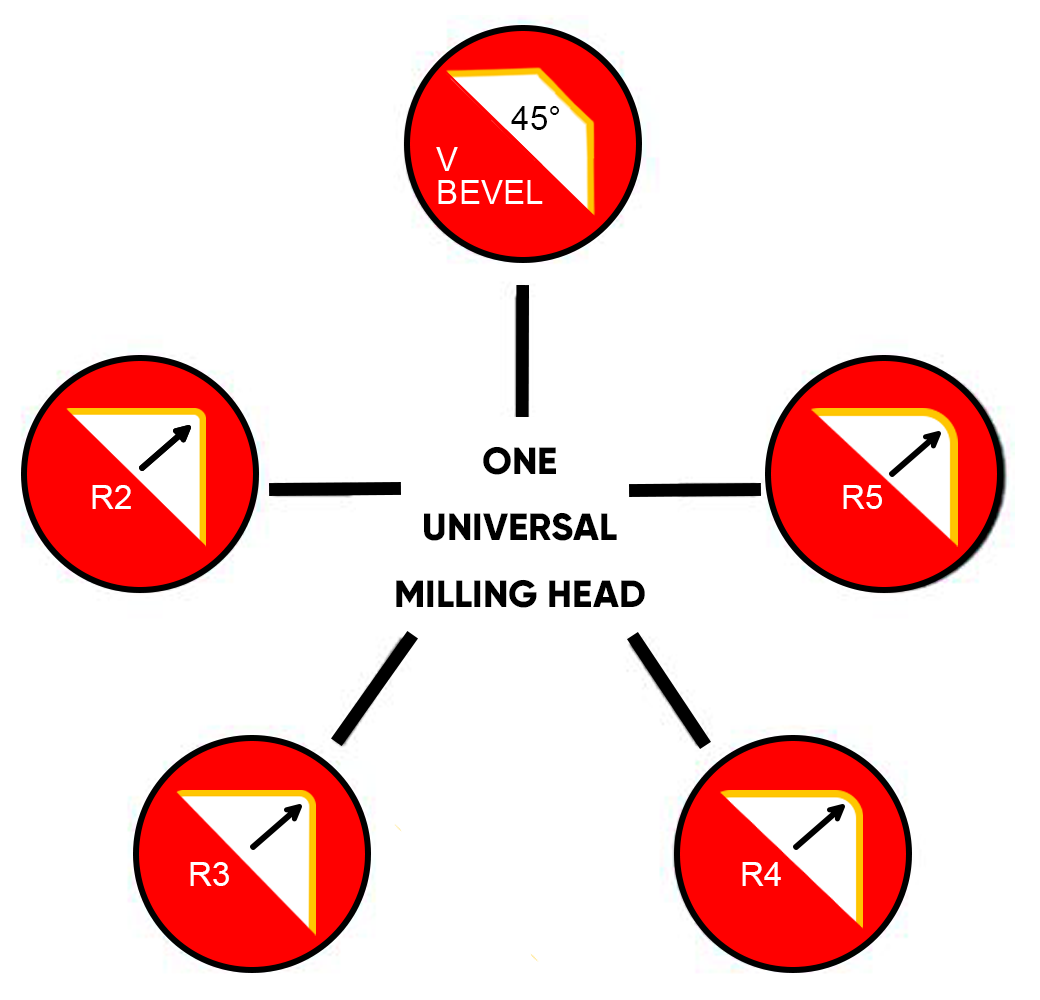

One Universal Milling Head - For Radius: R2, R3, R4, or R5 and a 45° Bevel Angle (optional 30° Milling Head available).
Multitask bevelling solution: For the perfect finish, create a radius edge with just one pass using the BM-6 Battery. This avoids flaking and gives a high-quality finish that lasts.
Accessories
Milling head 45° for cutting and radius bevels (4 inserts required)
Milling head 30° for cutting (4 inserts required)
Cutting insert for steel
Cutting inserts for aluminum
Specification
| Power supply | 18 V DC |
| Power | 900 W |
| Max Bevel Width | 6 mm |
| Spindle speed w/o load | 7800 rpm |
| Bevel Angle (depending on milling head) | 45° (30° option) |
| Minimum Workpiece Thickness | 2 mm (0.08”) |
| Countersinking Min. ID | 40 mm (1.57’’) |
| Radius Bevelling | R2, R3, R4, R5 |
| Dimensions (L x W x H) | 339 mm x 135 mm x 319 mm |
| Weight (without milling head) | 3.7 kg (8.2 lbs) |
