GECKO BATTERY

Battery Operated Mini Fillet Welder

A battery-operated version of the popular Gecko mini fillet welder, designed to produce consistent high-quality welds which is still compact and lightweight.

Want to make sure the 'Gecko Battery' is right for you? Speak to our specialist solutions team today.

FIND OUT MORE  PURCHASE OR HIRE  WATCH VIDEO
Gecko Battery
Continuous welding

Continuous welding

Dual Arc Ignition

Welding in horizontal and vertical positions

Min concave radius 1000 mm

Min concave radius 1250 mm

Min convex radius 1000 mm

Min convex radius 1000 mm

Dual torch welding

Dual torch welding

Dual Arc Ignition 1

Dual Arc Ignition

Horizontal speed 0 110 cm min

Horizontal speed 0–110 cm/min

Vertical speed 0 100 cm min

Vertical speed 0–100 cm/min

Gecko flexible track


Depending on sort of fixing units in use with flexible trackway, Gecko and Gecko HS welding tractors are suitable for applications with carbon steel, stainless steel and aluminum.

Gecko flexible track

FEATURES


Gecko Battery continous welding 1
Continous welding
Gecko Battery dual torch welding 1
Dual torch welding
Gecko Battery Multi surface guides
Multi-surface guiding
Geckobattery feature image 4
Closed loop speed control system stabilizes travel speed to reduce weld defects
Gecko Battery Precise torch adjustment
Precise torch adjustment with screw drive cross slide
Gecko Battery welding on concave and convex surfaces 1
Welding on concave and convex surfaces
Gecko Battery welding in vertical positions 1
Welding in vertical positions

Accessories


Standard guide arms (set of 2 pcs)

Standard guide arms (set of 2 pcs)

Dual arc ignition cable of 6.5 m (21 ft)

Dual arc ignition cable of 6.5 m (21 ft)

Power cord 3m (10 ft)

Power cord 3m (10 ft)

5.2 Ah Battery

5.2 Ah Battery

Power supply

Power supply

Battery charger

Battery charger

Dual arc ignition cable of 6.5 m (21 ft)

Dual arc ignition cable of 6.5 m (21 ft)

Torch Extension Arm

Torch Extension Arm

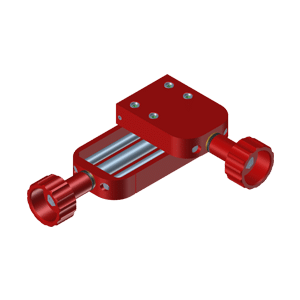

Extended cross-slide 0-76 mm (0-3”) up-down, 0-35 mm (0-1.38”) left-right

Extended cross-slide 0-76 mm (0-3”) up-down, 0-35 mm (0-1.38”) left-right

Fall arrester device

Fall arrester device

Cable anchor

Cable anchor

Dual Torch Mount

Dual Torch Mount

Short Rod Clamp

Short Rod Clamp

Magnet blocks (front) with increased power M5x25

Magnet blocks (front) with increased power M5x25

Magnet blocks (back) M6x25 incl. additional spacer plate required for Gecko Battery only

Magnet blocks (back) M6x25 incl. additional spacer plate required for Gecko Battery only

Torch clamp 22–35 mm

Torch clamp 22–35 mm

Magnet blocks (back) with increased power M6x25

Magnet blocks (back) with increased power M6x25

Magnet blocks (front) M5x25

Magnet blocks (front) M5x25

Display shield

Display shield

Download the GECKO BATTERY specifications

DOWNLOAD BROCHURE DOWNLOAD MANUAL

Watch our video of the Gecko Battery


Want to find out more, buy or hire?
