MANTIS BATTERY
Cordless Dual Torch Welding Tractor
The MANTIS Battery is a specialised welding tractor engineered for precise and efficient welding of steel profiles used as reinforcement elements in a wide range of steel structures.
It’s ideal for welding flat bars, angle profiles (L), T-bars, bulb flats, I-beams, H-beams, and C-channels.
The MANTIS Battery supports dual-torch operation, enabling both continuous and intermittent welding modes.
Its programmable control system lets you define welding parameters such as weld length, skip length, and crater filling at the start and end of each weld.
Powered by an 18 V DC Lithium-Ion High Density (LiHD) battery, it offers extended runtime, often enough for an entire shift, and uses the CAS battery system, compatible with our other cordless machines.
Want to make sure the 'Mantis Battery' is right for you? Speak to our specialist solutions team today.
FIND OUT MORE PURCHASE OR HIRE WATCH VIDEO
Programmable device
Continuous welding
Stitch welding
Dual torch welding
Dual Arc Ignition
W Horizontal speed 5–130 cm/min
WHY THE MANTIS?
- Cordless freedom – Powered by a long-lasting 18 V LiHD battery for all-day performance.
- Dual-torch capability – Weld with two torches simultaneously in continuous or intermittent mode.
- Precision control – Program weld length, skip length, and crater fill with ease.
- Versatile performance – Perfect for flat bars, angles, T-bars, bulb flats, I/H-beams, and channels.
- Built for efficiency – Delivers consistent, high-quality welds with minimal setup time.
FEATURES
Dual-Torch Operation – Supports simultaneous welding with two torches for faster productivity.
Programmable Welding Paths – Set weld length, skip length, and crater fill for consistent results.
Dual torch welding
Rugged and Portable – Built to handle industrial environments while remaining easy to move and set up.

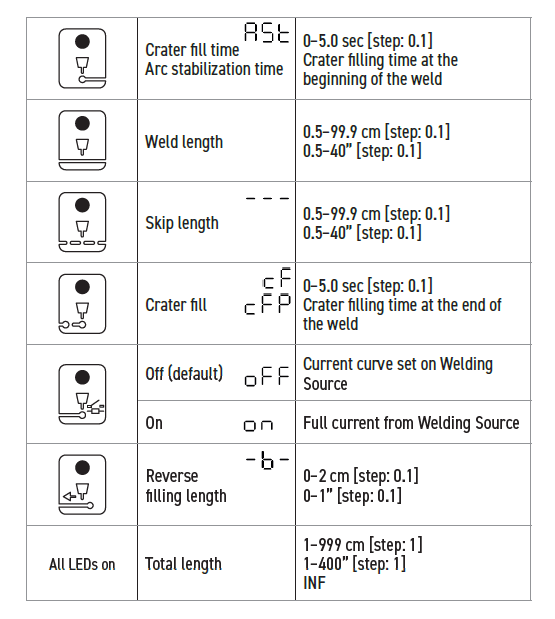

Programmable variables diagram
Specification
| Model | Mantis |
| Voltage | 18 V DC, 4.0 Ah |
| Power | 18w |
| Welding Positions (Horizontal) | PA / 1F / 1G / PB / 2F |
| Torch Diameter | 16-22mm, up to 35mm (option) |
| Torch Type | MIG / MAG |
| Horizontal Pulling Force | 150N |
| Horizontal Speed | 5–130 cm / min |
| Menu Language | English, French, German, Polish, Portuguese, Russian, Spanish, Turkish |
| Weight | 7 kg |
Features
| Dual-Torch Operation - Supports simultaneous welding with two torches for faster productivity. |
| Programmable Welding Paths - Set weld length, skip length, and crater fill for consistent results |
| Cordless Power - 18 V LiHD battery provides extended runtime, compatible with other PROMOTECH cordless machines |
| Versatile Profile Compatibility - Works with flat bars, angle profiles (L), T-bars, bulb flats, I-beams, H-beams, and C-channels |
| Continuous & Intermittent Modes - Adapt welding style to suit the application |
| Quick clamping Torch Holder mechanism - Suits different types of MIG/MAG torches |
| Rugged and Portable - Built to handle industrial environments while remaining easy to move and set up |
| Up to 40 complete programs may be stored in non volatile memory - Ensures consistent, easy operation |
| Reduced Waster filler metal - eliminates over welding |
| Capable of carrying and controlling 2 torches (without oscillation) |
