OSC-8 PRO

Generation Pendulum Oscillator with LED Display

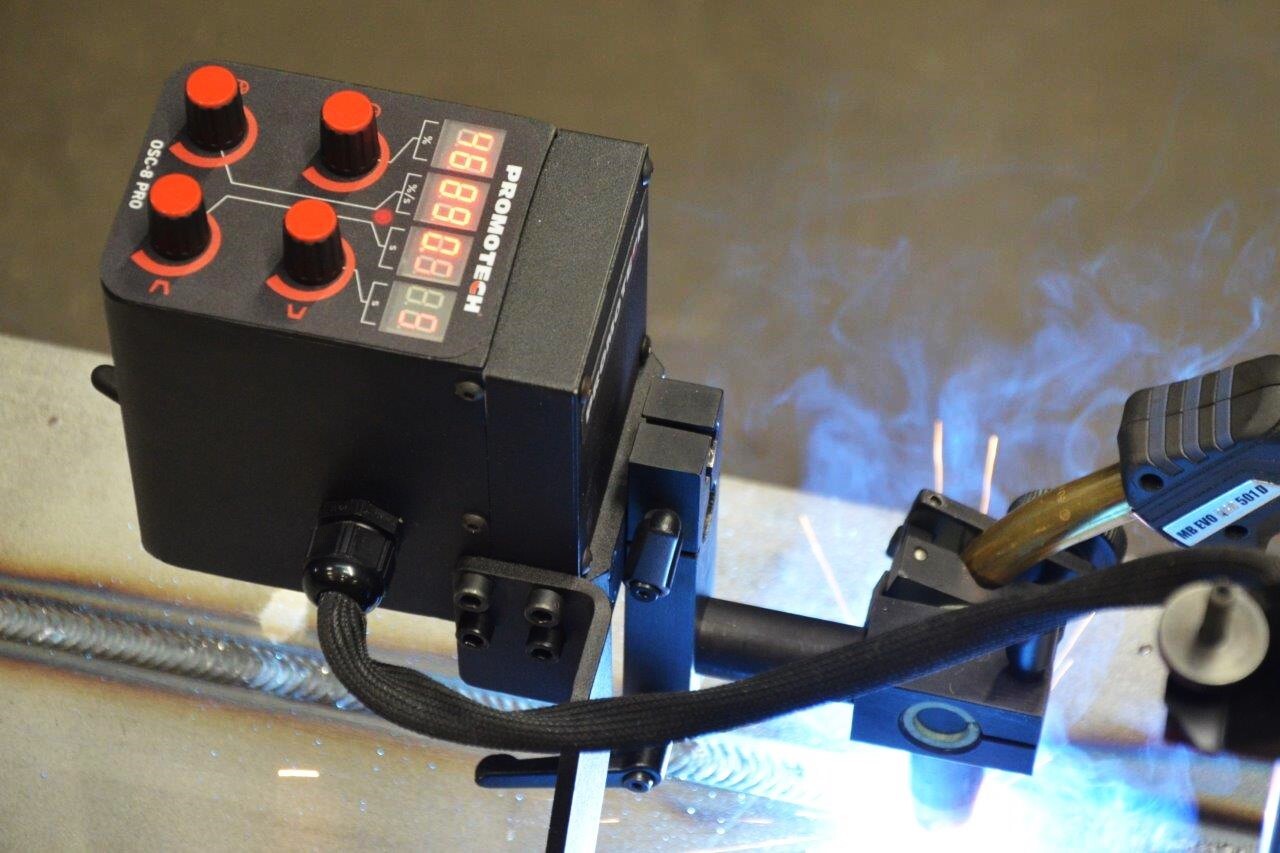

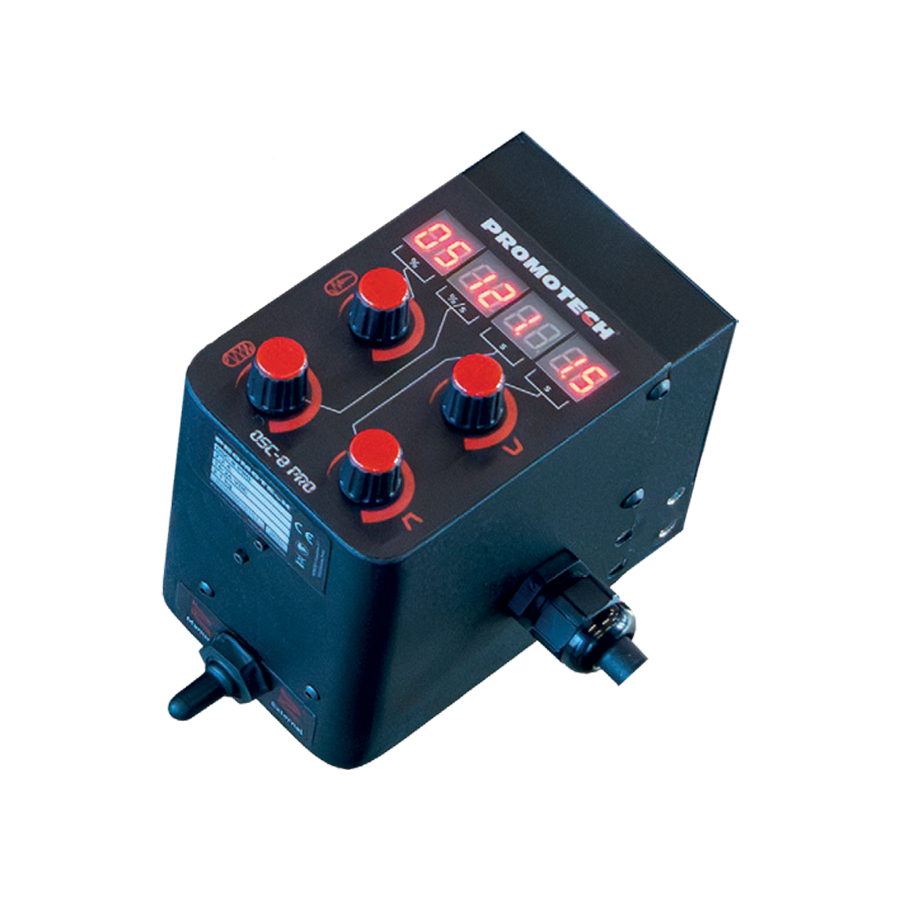

OSC-8 PRO Pendulum Oscillator

The OSC-8 PRO represents the next generation of pendulum oscillators, designed for precision, ease of use, and versatility.

Featuring a built-in LED display and intuitive controls, it allows quick pre-setting and adjustment of four key welding parameters:

Oscillation width
Oscillation speed
Left dwell time
Right dwell time

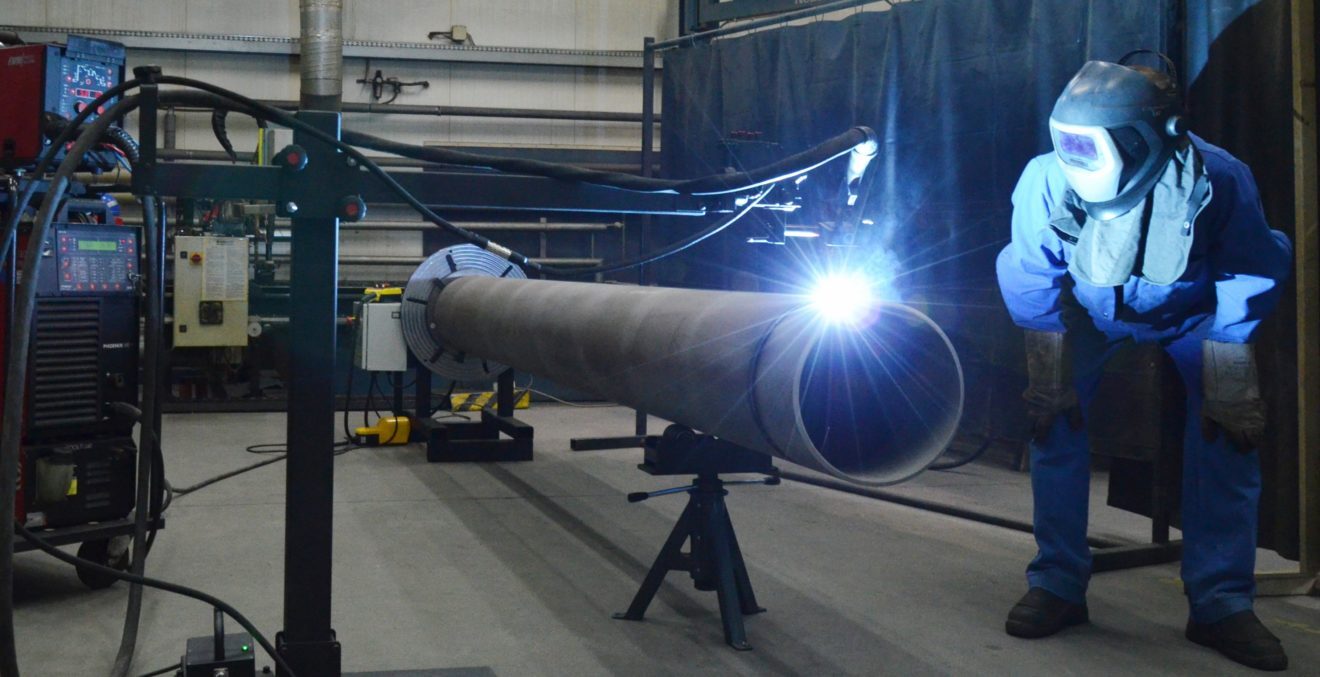

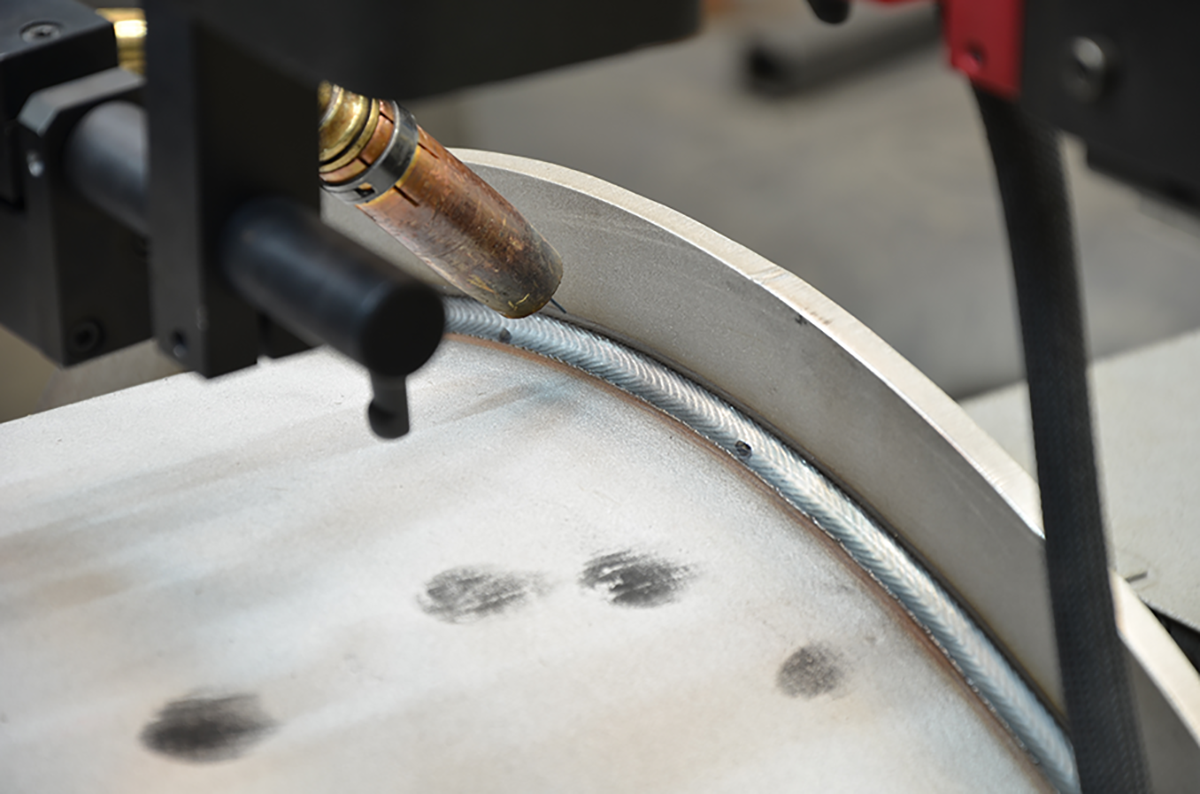

This advanced weave welding solution is ideal for a wide range of applications, including pipes, tubes, vessels, flanges, and fittings.

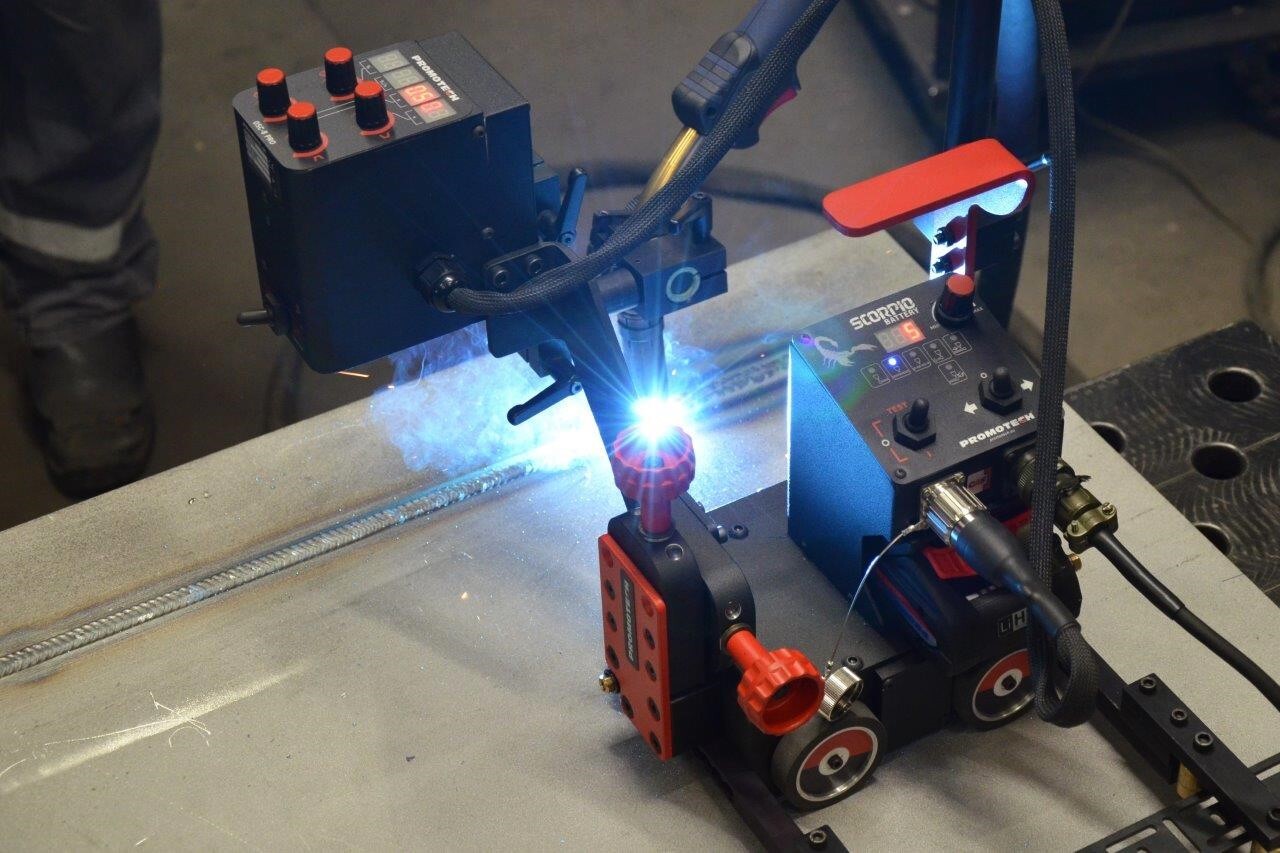

The portable OSC-8 PRO can be used with both track-mounted and trackless welding carriages, as well as with positioners, turning rolls, or existing column and boom systems. It can also operate independently using rugged freestanding supports.

For more advanced setups, the OSC-8 PRO can be integrated with a variety of external equipment to form complete automated welding systems, offering multiple power supply options, operating modes, and custom weld paths.

Want to make sure the 'OSC-8 PRO' is right for you? Speak to our specialist solutions team today.

FIND OUT MORE PURCHASE OR HIRE WATCH VIDEO

DOWNLOAD BROCHURE

WHY THE OSC-8 PRO?

OSC-8 PRO is suitable for MIG/MAG to automate processes in heavy fabrication industries such as pipeline and bridge construction, shipbuilding and tank welding.

Key Features

The OSC-8 Pro pendulum oscillator is designed to oscillate MIG/MAG torches with the diameter of 16–22 mm (5/8–7/8”). The oscillator is installed onto a 22 mm (7/8”) diameter rod and connected to a welding device. It can be controlled manually or by using an external START-STOP switch. Using an optional freestanding support allows welding of rotating pipes or moving plates. An optional power supply allows connecting the oscillator to a 230 V or 115V power source.
