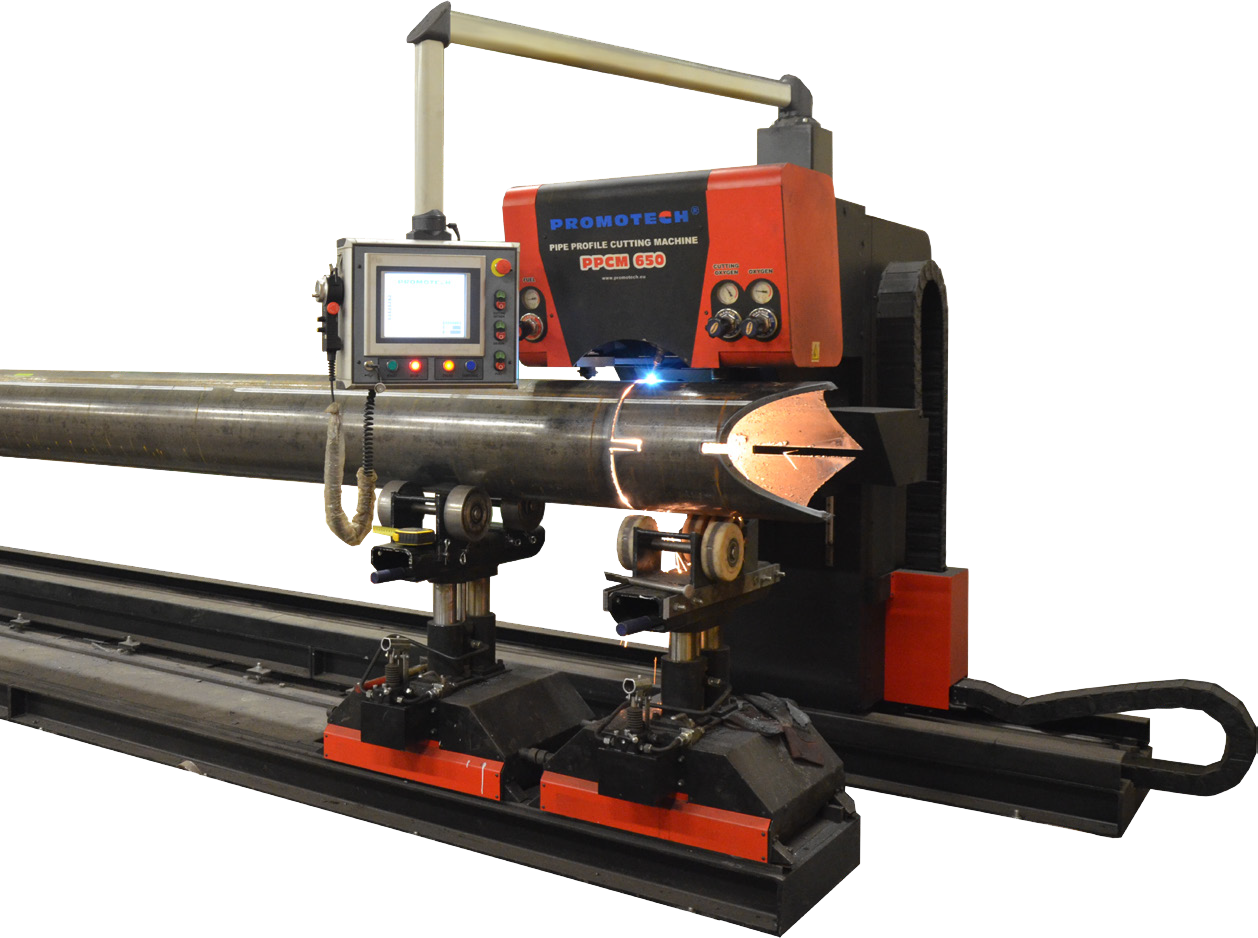

PPCM 650
Pipe Profile Cutting Machine
The CNC controlled Pipe Profile Cutting Machine allows 3D cutting/beveling using oxy-fuel or plasma.
Advanced design and top quality components enable fast and efficient cutting with top quality results.
The most important feature and advantage of PPCM-650 is its user friendly software including a wide scope of standard macros representing the typical cutting
shapes. Integrated library of macros allows for parametric definition of typical pipe joints and fast shape programming on-site directly from the machines’ control panel just after a short training.
Off-line programming is also possible by means of dedicated PPCM SIM PC software containing the same macros library.
Pipe joints can be prepared remotely in the office to keep machine operating, increasing process efficiency and reducing downtime.
Want to make sure the 'PPCM 650' is right for you? Speak to our specialist solutions team today.
FIND OUT MORE PURCHASE OR HIRE WATCH VIDEO
Pipe OD 50 to 650 mm (2-26”)
Max. pipe length 6 or 12 m
Pipe weight up to 3 000 KG
Wall thickness: 3 – 50 mm
Max. cutting angle: 45 degree
3D Oxy-fuel cutting Acetylene (standard) Propane (option)
3D Plasma cutting (option)
CAD/CAM file transfer through Lantek Flex 3D Tubes (option)
Specification
| Pipe OD diameter | 50 - 650 mm (2-26”) | |
| Max. pipe length | 6 or 12 m (19 or 39 ft.) | |
| Pipe weight | up to 3 000 kg | |
| Wall thickness | 3 – 50 mm | |
| Max. cutting angle | 45° | |
| Cutting method | Oxy-Acetylene (Option), Oxy-Propane (Option), Plasma (Option) | |
| Ignition: Oxy-fuel / Plasma | Manual / Automatic | |
| Pipe support | 2 pcs for up to 6-meter long pipes | 4 pcs for up to 12-meter long pipes |
| Vertical oval compensation mechanism | Included | |
| Airconditioning of control cabinet | Option | |
| Fume extraction system | Option | |
| Auto nesting of multiple parts | Option | |
| Transfer of NC data from CAD: Tekla files, SAT, STEP, IFC, Excel etc. files thru LANTEK flex 3D | Option |
Features
| User-friendly software, including a library of macros for most typical cutting shapes. |
| Automatic compensation of cutting speed depending on the material thickness, torch angle, and cutting direction for the best cutting quality. |
| Heavy-duty rigid constructions. |
| Well-proven in the most demanding environments. |
| Easy access to gas valves. |
| Fume exhaust system through spindle (option). |
| Additional torch to heat up the material (option). |
