BM-25P
A Pipe Bevelling Innovation.

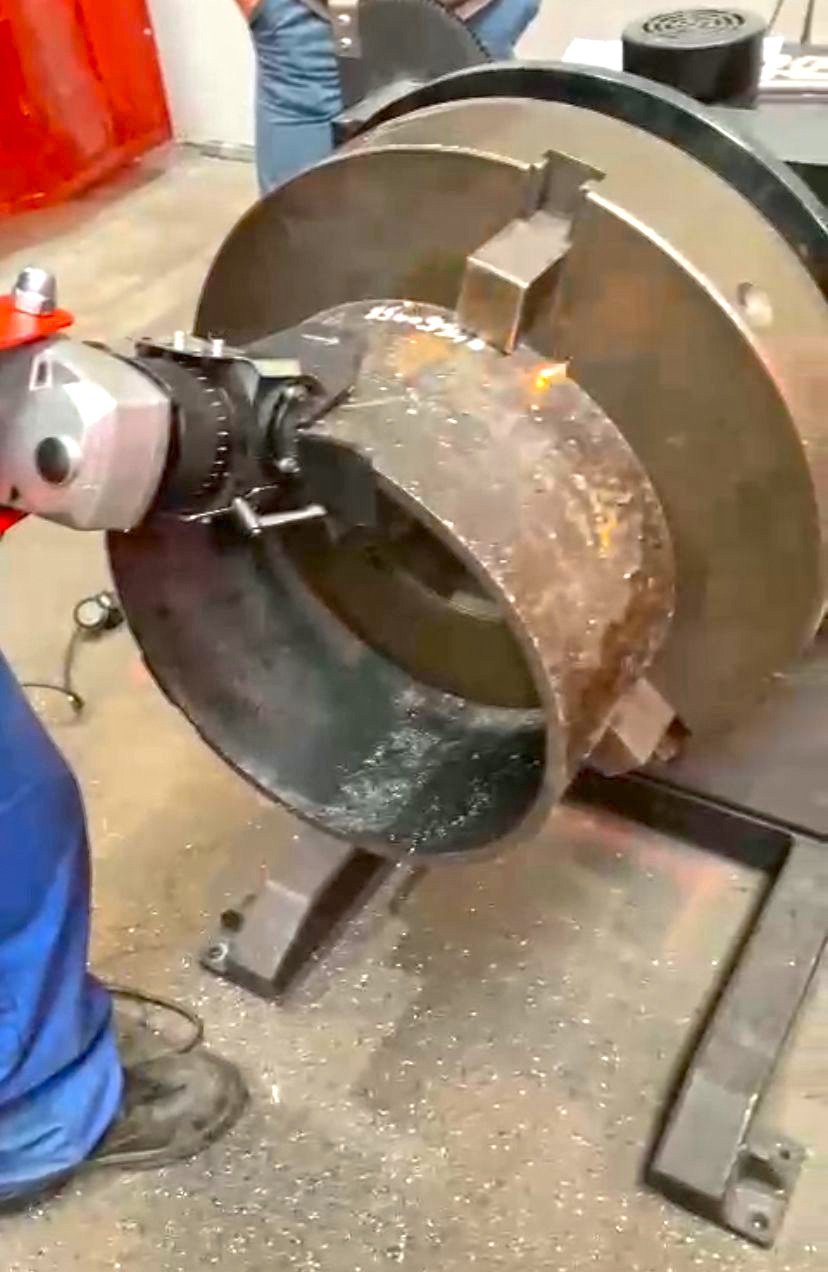

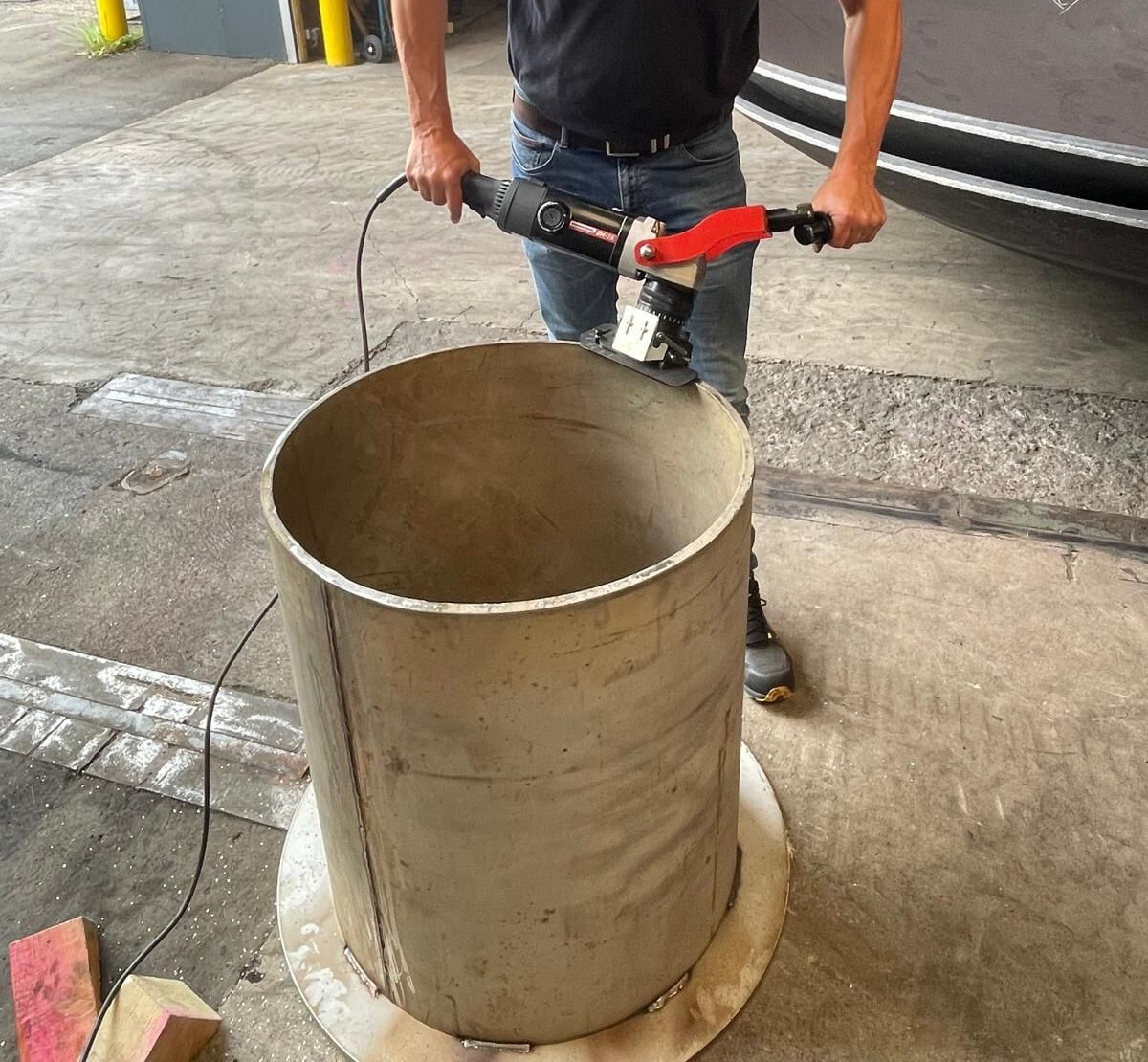

The BM-25P is an all-new, easy-to-use, portable heavy-duty machine designed for bevelling steel pipes before welding.
Want to make sure the 'BM-25P' is right for you? Speak to our specialist solutions team today.
FIND OUT MORE PURCHASE OR HIRE WATCH VIDEO
Pipe OD beveling min. OD 100 mm (4”)
0°-90° 15°-75° (recommended)
Max bevel width 25 mm
Why the BM-25P?

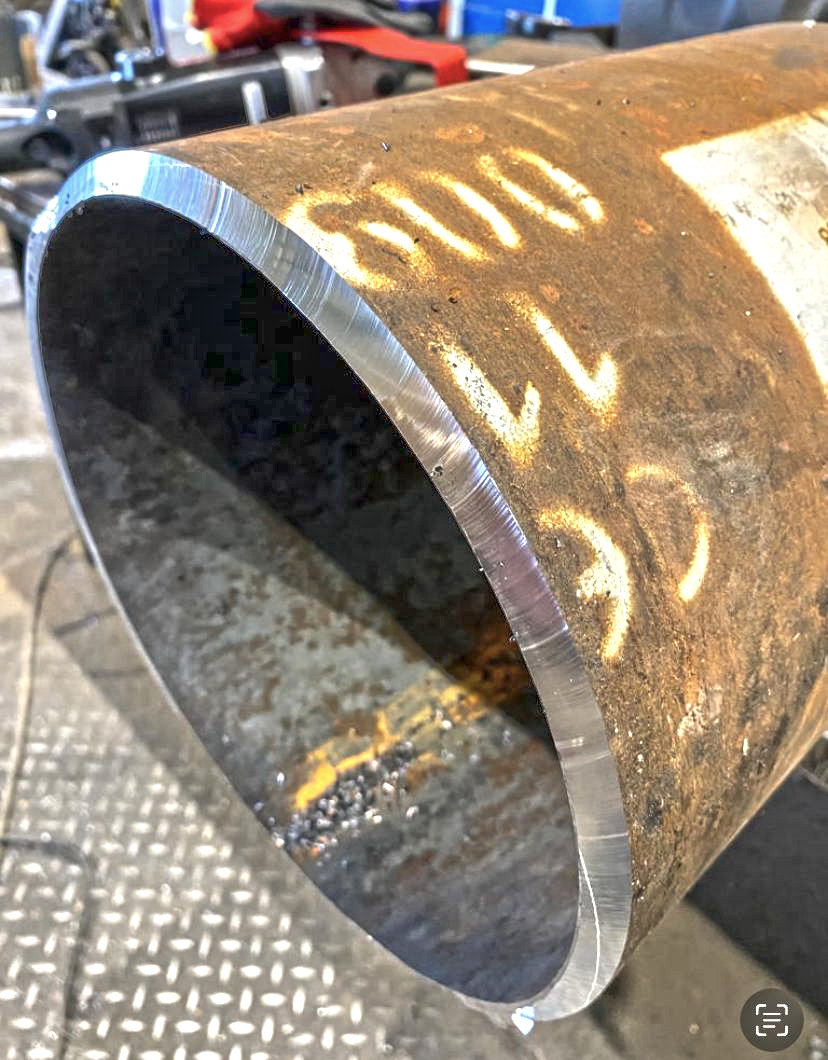

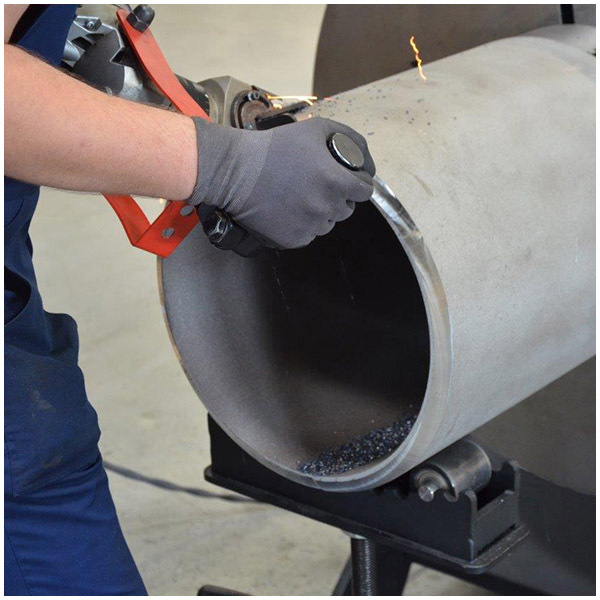

The BM-25P is a powerful, compact bevelling machine designed for fast and accurate preparation of pipes and tubes before welding. Built for heavy-duty industrial use, it delivers consistent bevels on a wide range of pipe diameters and wall thicknesses with a minimum pipe diameter of 100 mm.
Capable of producing bevel widths up to 25 mm, the BM-25P uses a high-speed rotary milling head with replaceable inserts for smooth, chatter-free operation. Equipped with guide rollers, which make it easy and light to operate. Its adjustable bevel angle and easy setup make it ideal for workshop or site use, providing a complete, efficient solution for pipe bevelling tasks.
features and benefits:
• Comfort and ergonomics of work
• Continuously adjustable bevel angle between 0 and 90 degrees
• Single head operates with face milling method
• Maximum 25 mm bevel width (more than one pass could be required)
• Continuous bevel width adjustment
• Powerful electric motor
• Milling head is equipped with 5 pcs of 2-sided indexable cutting inserts
• Electronic speed control between 1800–5850 rpm
• Overload protection

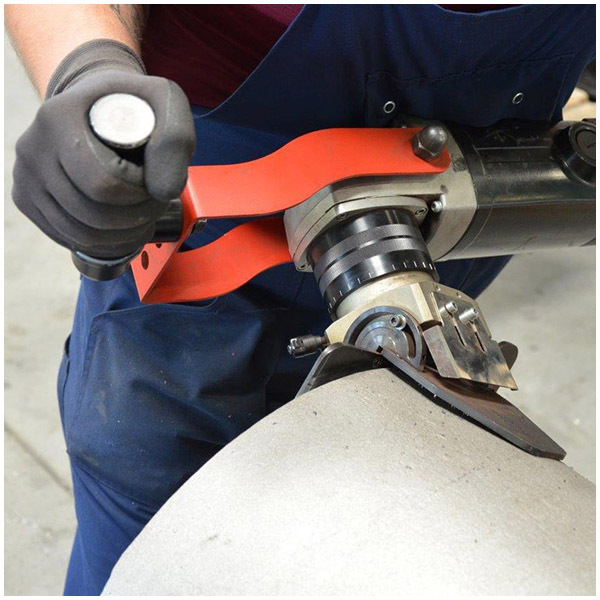

Comfort and ergonomics of work:

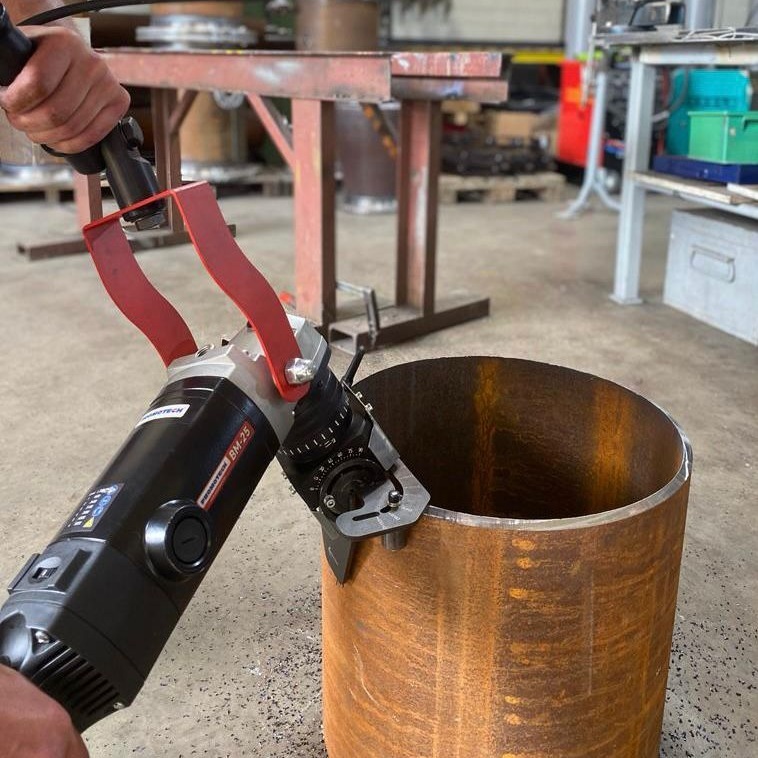

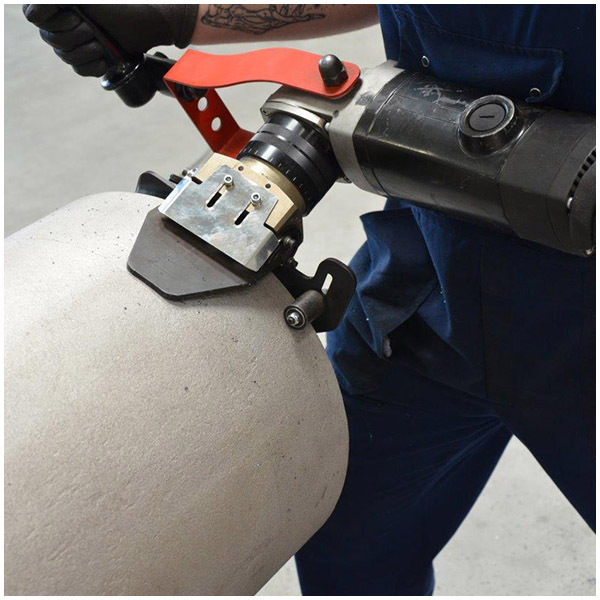

• Adjustable grip and handle enable comfort of work for both right and left-handed and operators of different heights

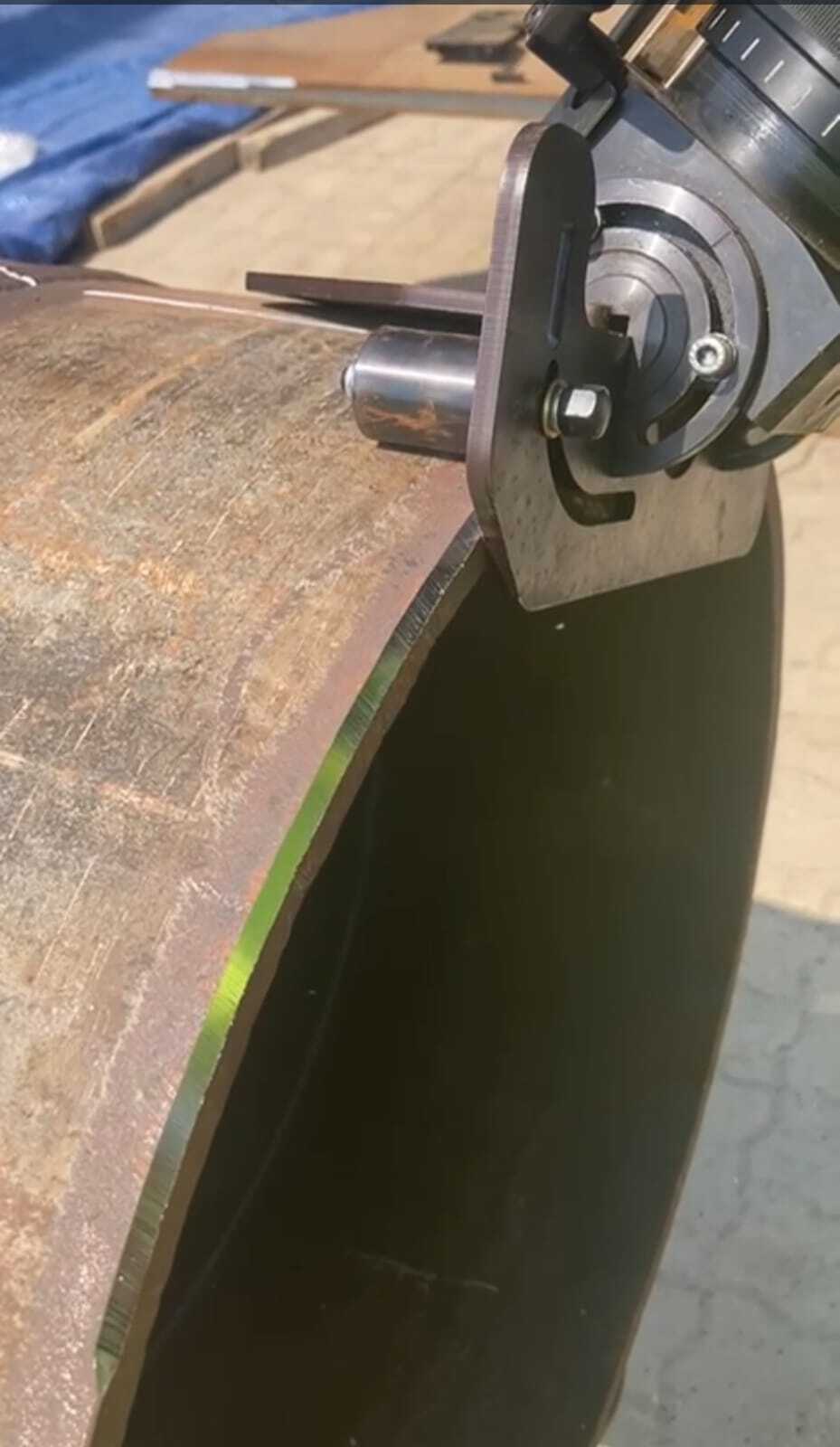

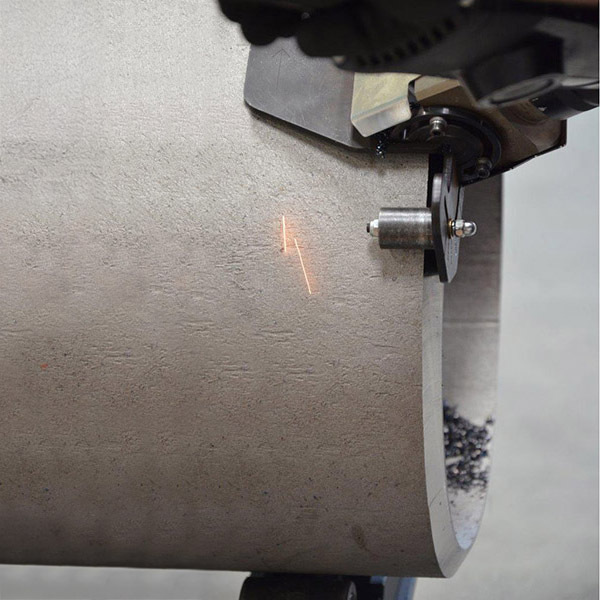

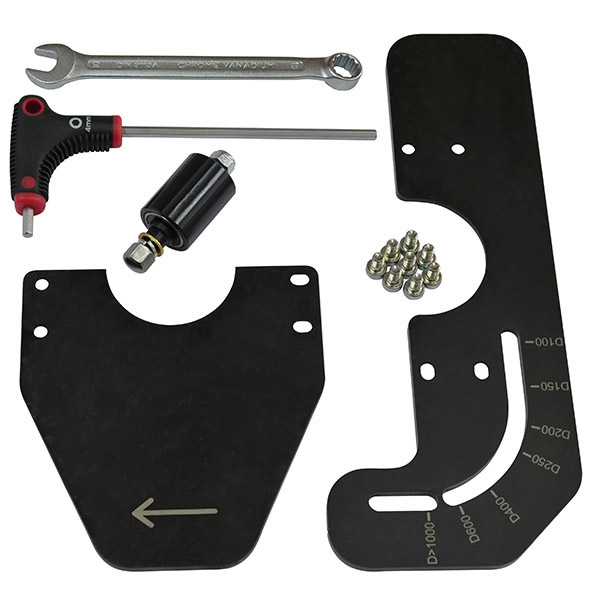

• Guide set with rollers can be rotated through 360 degrees
• 2 roller positions (wide and narrow)
• Each user can individually adjust the position of the grip and handle
• Grip can be rotated through 360 degrees
• The handle can be tilted to the desired angle

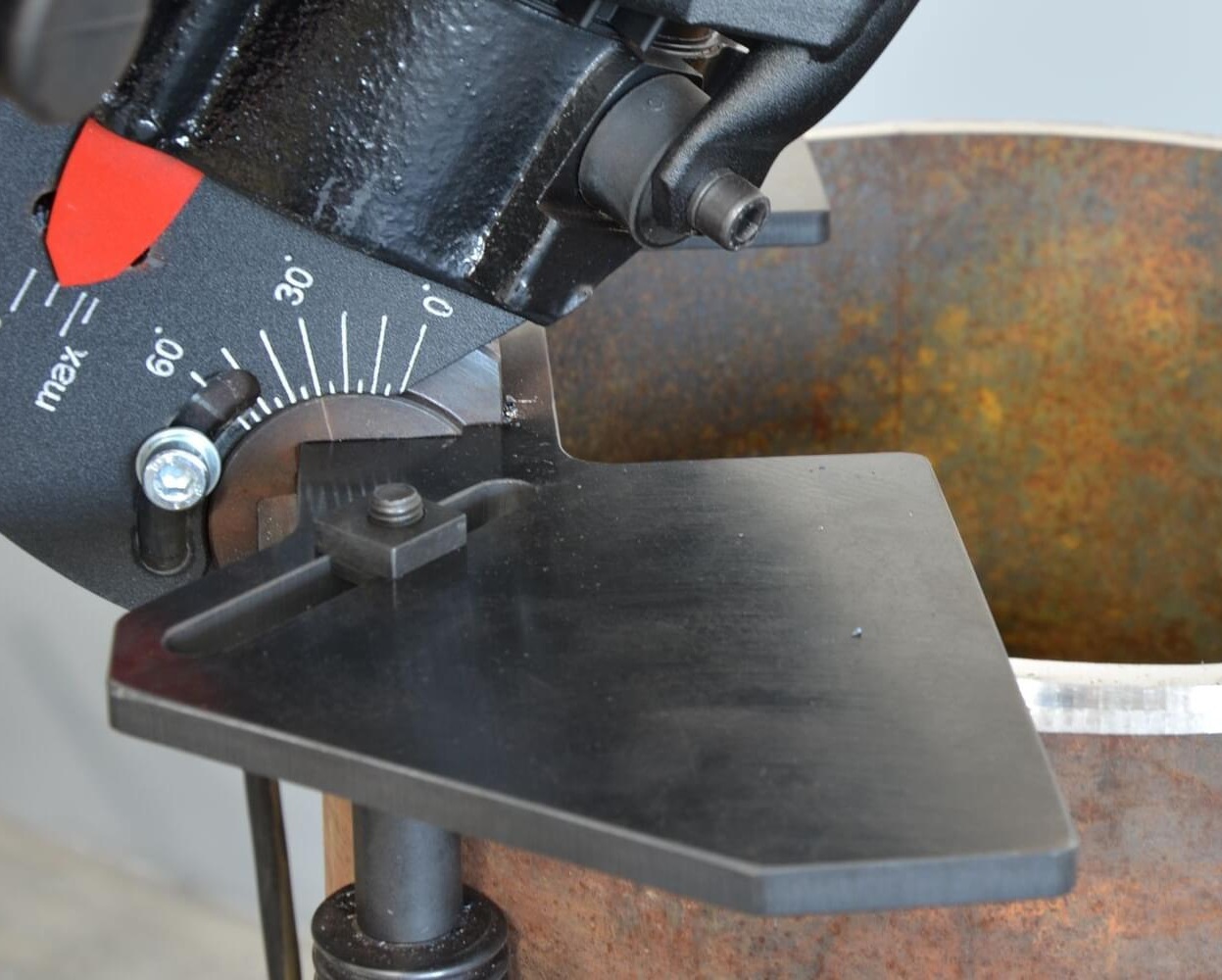

Continuously adjustable bevel angle between 0 and 90 degrees:
• One milling head for full range of angles
• No need for separate milling heads for specific angles
• Recommended bevel angle from 15 to 75 degrees
BM-25P

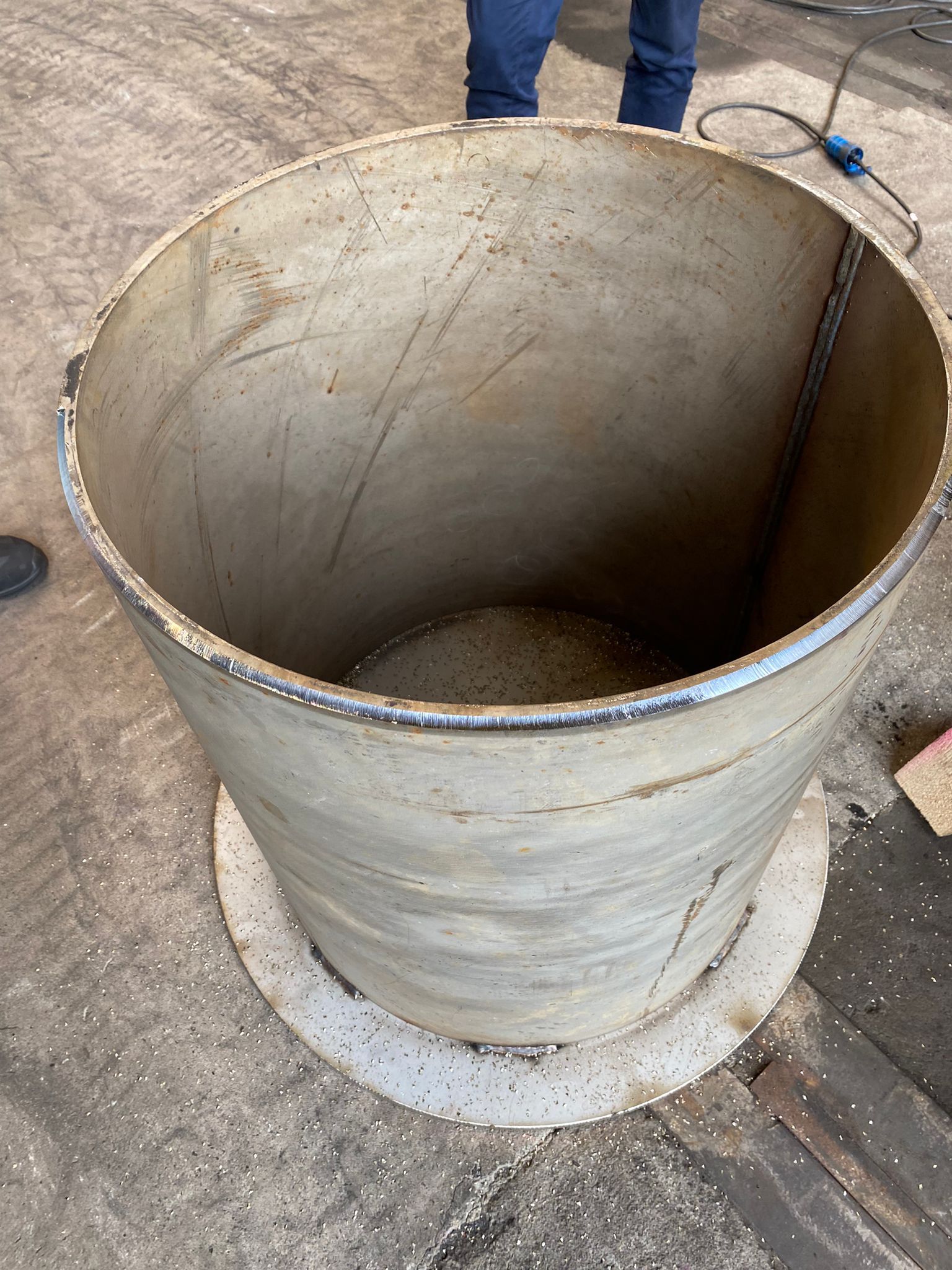

Bevelling for pipes with an outer diameter of at least 100 mm in diameter.
The BM-25P allows pipe bevelling with an OD of at least 100 mm in diameter.
Specification
| Voltage | 1~ 220-240 V, 50-60 Hz | |
| Power | 2200 W | |
| Spindle speed (without load) | 1800-5850 rpm | |
| Maximum bevel width (b, Fig. 1) | 25 mm (1") | |
| Maximum depth of cut (d, Fig. 1) | 12,5 mm (1/2") | |
| Bevel angle (β, Fig. 1) | 0°-90° 15°-75° (recommended) | |
| Minimum workpiece thickness | 2 mm (0.08”) | |
| Weight | 12,5 kg (27 lb) | |
| Required ambient temperature | 0–40°C (34–104°F) |
