BM21 PLATE & PIPE BEVELLING MACHINE

Multifunctional Edge Preparation Machine

A multifunctional edge preparation bevelling machine designed for bevelling both plate and pipes with ease and accuracy, which is operator-friendly, versatile and portable.

The BM21 is a new design model, replacing the earlier BM-20 version which has been a popular choice for the steel fabricator for almost 20 years. Designed for ease of operation, the BM21 will create the perfect prep-ready bevelled edge on all steel sections and pipe, without the use of any additional tools or accessories.

Want to make sure the 'BM21 Plate & Pipe Bevelling Machine' is right for you? Speak to our specialist solutions team today.

FIND OUT MORE  PURCHASE OR HIRE  WATCH VIDEO

Top bevelling

Facing off

Bevel angles 0° to 60°

Bevel width up to 21mm

Pipe OD range 150-300mm 260-600mm (option)

WHY THE BM21?


BM-21 – Industrial Plate & Pipe Beveler will surprise you with its variety of helpful features which will make your job easy and efficient. This state of the art beveler is perfect choice when beveling steel plates and pipes prior to welding.

FEATURES


Plate facing-off
Bevelling large pipes

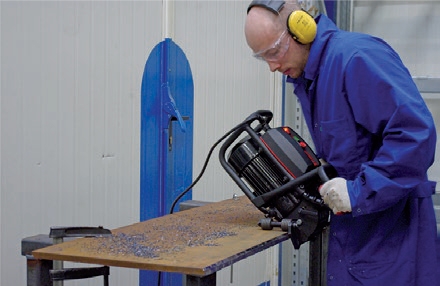

Plate beveling

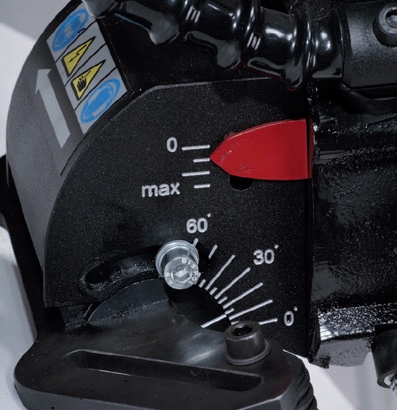

Continuous angle adjustment from 0 to 60 degrees

Accessories


Mono block milling head, with 10 indexable inserts fixed with screws. Product code: GLW-0461-03-00-00-0

Cutting Insert (1 piece), sold 10 pcs/box Product code: PLY-000282

Cutting Insert HD (1 piece), sold 10 pcs/box Product code: PLY-000591

Standard universal guide plate for beveling both plates and pipes 150-300mm (6-12”)

Optional guide for pipes 260-600mm (10-24”) Product code: PRW-0461-22-00-00-0

Download the BM21 specifications

DOWNLOAD BROCHURE DOWNLOAD MANUAL

Watch our video of the BM21 Plate & Pipe Bevelling Machine
