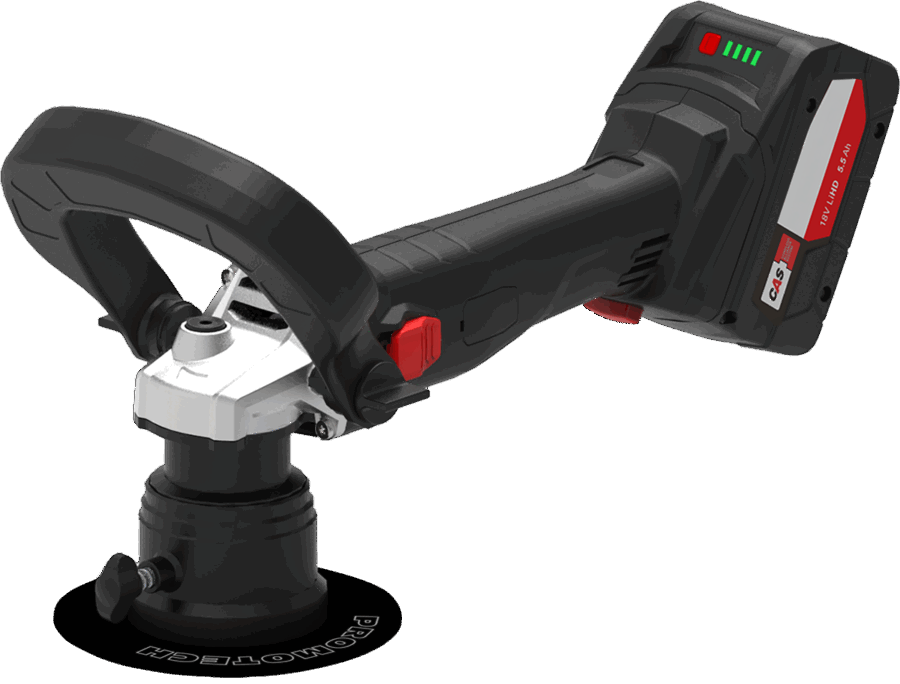

BM-6 BATTERY

Cordless Compact Beveller

The BM-6 Battery is a compact, lightweight, battery-powered machine that produces clean bevels up to 6 mm wide on plates, pipes, and contours. It’s also the ideal tool for rounding off radii R2, R3, R4, and R5 on metal structures before painting, helping to prevent rust build-up on sharp edges.

With no supply cable to trip over or tangle, the BM-6 Battery offers maximum flexibility and portability, making it perfect for outdoor use or remote locations with no access to mains power.

To keep you working longer, the BM-6 Battery comes with two rechargeable CAS batteries included.

Want to make sure the 'BM-6 Battery' is right for you? Speak to our specialist solutions team today.

FIND OUT MORE  PURCHASE OR HIRE  WATCH VIDEO
BM-6 Battery
Top bevel

TOP BEVELLING

Icon bevel radius

BEVEL RADIUS, R2, R3, R4 OR R5

Icon archededge

ARCHED EDGE BEVELLING

Icon countersinking

COUNTERSINKING MIN. ID 40 mm

Icon pipe od bevelling

PIPE OD BEVELLING

Icon pipe id bevelling

PIPE ID BEVELLING Min. ID 40 mm

Bevel angles

BEVEL ANGLES 45° (with optional 30°)

Bevel width

MAX BEVEL WIDTH 6 mm

WHY THE BM-6?


The new EN 1090 & EN-ISO 12944 Part 2 applications directive, demands a soft or radius edge applying to all steel sections before painting, to prevent rust build up on sharp edges. The BM-6 Battery, is quick, simple-to-use, and creates a perfect radius in just one pass, saving time and money over conventional grinding methods.

One Universal Milling Head


For Radius: R2, R3, R4, or R5 and a 45° Bevel Angle (optional 30° Milling Head available).

One Universal Milling Head

Multitask bevelling solution


For the perfect finish, create a radius edge with just one pass using the BM-6 Battery. This avoids flaking and gives a high-quality finish that lasts.

Multitask bevelling solution

FEATURES

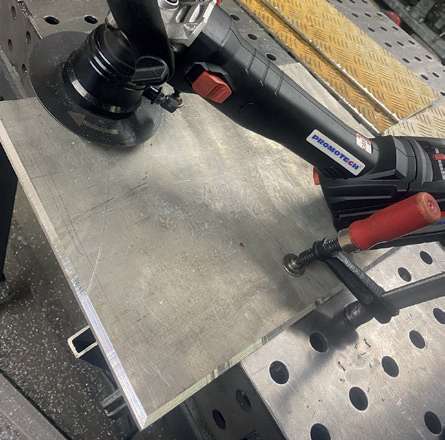

BM6 Aluminium Bevelling
Aluminum bevelling

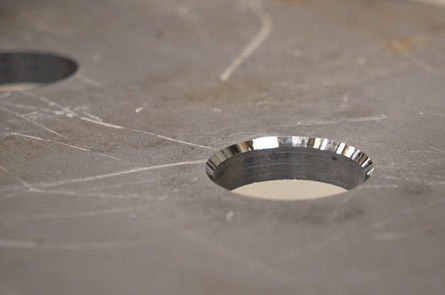

BM6 Countersinking
Countersinking

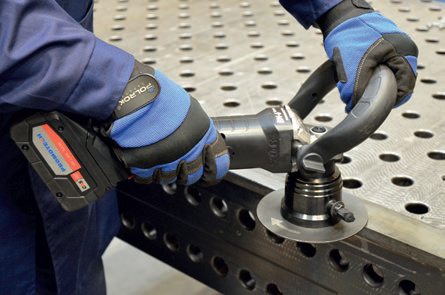

BM 6 Rounding off R2 R3 R4 R5
Rounding off curved edges

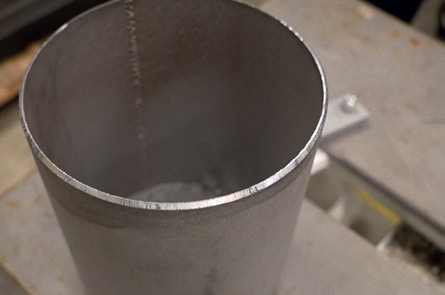

BM6 Pipe Bevelling
Pipe bevelling

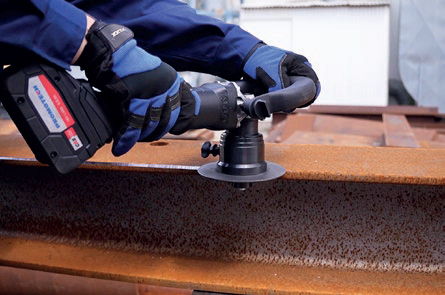

BM6 Onsite Bevelling
On-Site Bevelling

Accessories


Milling head 45° for cutting and radius bevels (4 inserts required)

Milling head 45° for cutting and radius bevels (4 inserts required)

Milling head 30° for cutting (4 inserts required)

Milling head 30° for cutting (4 inserts required)

Cutting insert for steel

Cutting insert for steel

Cutting inserts for aluminum

Cutting inserts for aluminum

Download the BM-6 specifications
