BM-18A PNEUMATIC PLATE BEVELLER

THE NEW GENERATION OF POWERFUL, PORTABLE PNEUMATIC PIPE BEVELLING

The new SteelBeast® BM-18A pneumatic plate beveller features a powerful pneumatic motor that allows machining up to an 18mm bevel. With the new hexagonal fixing of the milling head increase the durability and makes replacement of the head convenient, easy and much more user-friendly.

Want to make sure the 'BM-18A PNEUMATIC PLATE BEVELLER' is right for you? Speak to our specialist solutions team today.

FIND OUT MORE  PURCHASE OR HIRE  WATCH VIDEO
BM-18A PNEUMATIC PLATE BEVELLER
Bevel width

Max bevel width 18 mm

Top bevel

Top bevelling

Bevel angles

Bevel angles 22.5°, 30°, 37.5°, 45°, 50°, 55°, 60°

Icon bevel radius

Rounding edges R2, R3, R4 or R5

Icon countersinking

Countersinking Min. ID 40 mm

Plate thickness

Min. plate thickness 2 mm

Why the BM-18A?


- Powerful pneumatic motor.

- Maximum 18 mm bevel width (more than one pass could be required).

- New more durable milling heads with hexagonal fixing.

- Easy replacement of milling heads.

- Bevelling milling head is equipped with 5 pcs of 2-sided indexable cutting inserts.

- Milling head for rounding is equipped with 4 pcs of 4-sided indexable inserts up to R5.

- Creates the perfect radius on both straight and curved edges.

- Bevel on holes from 40 mm in diameter.

Why the BM-18A?

New design of milling heads with hexagonal fixing


The new BM-18A from SteelBeast offers increased durability and a more convenient way to assemble and disassemble the milling head.

The guiding roller is integrated neatly with each milling with the clearance between milling and guiding roller is precisely calibrated. Therefore, requires no adjustment by the operator.

New design of milling heads with hexagonal fixing

FEATURES OF THE NEW BM-18A

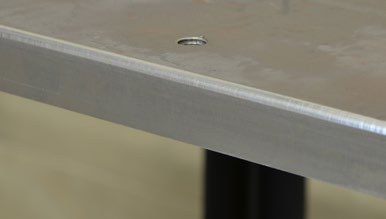

1111
Creating a perfect radius on both straight...

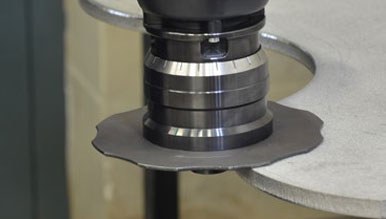

2222
…and curved edges

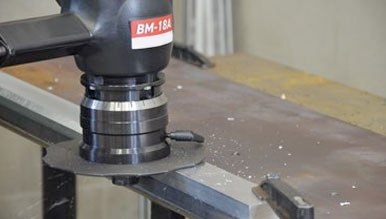

Bm18a features image 3
Aluminum bevelling

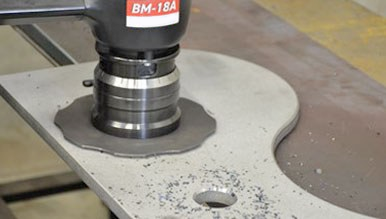

Bm18a features image 4
Bevel on holes from 40 mm in diameter

Accessories


Air preparation unit ZST-000021

Air preparation unit ZST-000021

Cutting insert for steel (sold 10 pcs/box)

Cutting insert for steel (sold 10 pcs/box)

Cutting insert for aluminum (sold 10 pcs/box)

Cutting insert for aluminum (sold 10 pcs/box)

Cutting insert R5 (sold 10 pcs/box)

Cutting insert R5 (sold 10 pcs/box)

Radius insert positioner

Radius insert positioner

Beveling milling head

Beveling milling head

Milling head for rounding

Milling head for rounding

Download the BM-18A specifications
